1

Nominal voltage/工作电压

12V DC

24V DC

2

No load current /空载电流

25 mA

25 mA

3

No load speed/空载转速

7500 RPM

6500 RPM

4

Rated current/额定电流

400 mA

450 mA

5

Rated speed/额定转速

6150 RPM

4800 RPM

6

Rated torque/额定扭矩

4.5 mNm

10 mNm

7

Stall current/堵转电流

2108 mA

1650 mA

8

Stall torque/堵转扭矩

25 mNm

38.2 mNm

9

Max. efficiency/最大效率

75.00%

75.00%

10

Ambient temperature/温度

-20°C~+55°C

11

Output bearing/输出轴端轴承

 Sleeve bearing/含油轴承

12

Type of brush/刷片种类

Precious metal brush /精密金属刷

Specifications of gearmotor under 12VDC/齿轮电机在12VDC下的参数表

Stage

Ratio

Rated current

Rated speed

Rated torque

Max.momentary current

Max.momentary torque

Weight

段数

减速比

额定电流

额定转速

额定扭矩

最大瞬间电流

最大瞬间扭矩

重量

1

3.7:1

400 mA

1662 RPM

14.5 mNm

590 mA

21.7 mNm

103.5 g

1

4.3:1

400 mA

1430 RPM

17.6 mNm

590 mA

26.4 mNm

103.5 g

1

5.2:1

400 mA

1182 RPM

20  mNm

590 mA

30 mNm

103.5 g

2

16:1

400 mA

384 RPM

52 mNm

590 mA

78 mNm

115 g

2

19:1

400 mA

324 RPM

61.7 mNm

590 mA

92.5 mNm

115 g

2

27:1

400 mA

228 RPM

87.8 mNm

590 mA

131.7 mNm

115 g

3

59:1

400 mA

104 RPM

163 mNm

590 mA

244.5 mNm

125.5 g

3

79:1

400 mA

77.8 RPM

218 mNm

590 mA

327mNm

125.5 g

3

99:1

400 mA

62 RPM

273.5 mNm

590 mA

410 mNm

125.5 g

3

139:1

400 mA

44 RPM

384 mNm

590 mA

576 mNm

125.5 g

4

264:1

400 mA

23 RPM

620 mNm

590 mA

930 mNm

142.5 g

4

337:1

400 mA

18 RPM

791 mNm

590 mA

1200 mNm

142.5 g

4

516:1

400 mA

12 RPM

1200 mNm

590 mA

1800 mNm

142.5 g

4

721:1

400 mA

8.5RPM

1700  mNm

480 mA

2000 mNm

142.5 g

Specifications of gearmotor under 24VDC/齿轮电机在24VDC下的参数表

Stage

Ratio

Rated current

Rated speed

Rated torque

Max.momentary current

Max.momentary torque

Weight

段数

减速比

额定电流

额定转速

额定扭矩

最大瞬间电流

最大瞬间扭矩

重量

1

3.7:1

450 mA

1297 RPM

31.5 mNm

660 mA

47 mNm

103.5 g

1

4.3:1

450 mA

1116 RPM

36.5 mNm

660 mA

55 mNm

103.5 g

1

5.2:1

450 mA

923 RPM

44.2 mNm

660 mA

66.5 mNm

103.5 g

2

16:1

450 mA

300 RPM

115 mNm

660 mA

172.5 mNm

115 g

2

19:1

450 mA

253 RPM

137 mNm

660 mA

205.5 mNm

115 g

2

27:1

450 mA

178 RPM

195 mNm

660 mA

292.5 mNm

115 g

3

59:1

450 mA

81 RPM

362 mNm

660 mA

543 mNm

125.5 g

3

79:1

450 mA

60.5 RPM

485 mNm

660 mA

727.5 mNm

125.5 g

3

99:1

450 mA

48 RPM

608 mNm

660 mA

912 mNm

125.5 g

3

139:1

450 mA

34.5 RPM

854 mNm

660 mA

1281 mNm

125.5 g

4

264:1

450 mA

18 RPM

1378 mNm

660 mA

2067 mNm

142.5 g

4

337:1

450 mA

14 RPM

1750 mNm

660 mA

2625 mNm

142.5 g

4

516:1

450 mA

9 RPM

2000 mNm

500 mA

3000 mNm

142.5 g

4

721:1

255 mA

7.5 RPM

2000 mNm

370 mA

3000 mNm

142.5 g

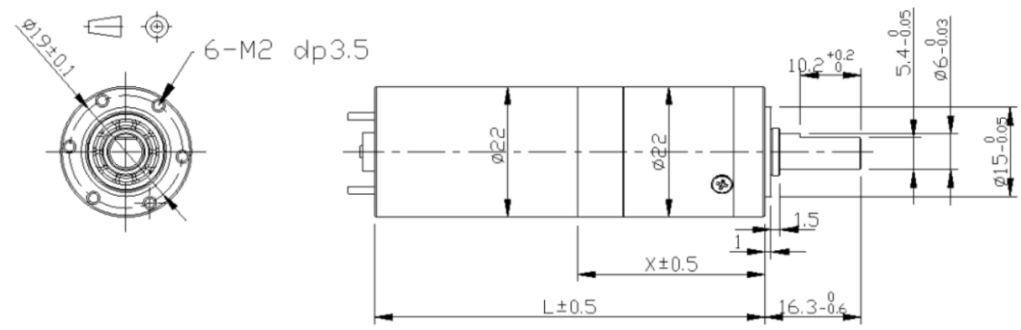

Gearbox stages

Length of gearbox X

Length of gearmotor  L

   齿轮箱段数

齿轮箱长 X

齿轮电机总成   L

1

19.4

52.9

2

25.4

58.9

3

31.4

64.9

4

37.4

70.9
